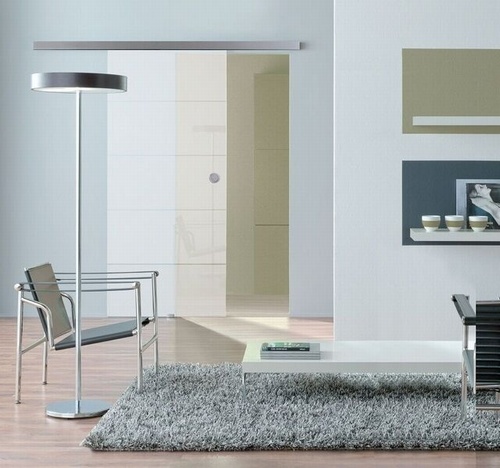

Planeo 120 Comfort Sliding Door System (Glass or Wood)

Description

Can be used for 1 or 2 leaf wooden or glass sliding doors.
Glass is securely clamped and does not require any special preparation. The soft closing operation gently guides to doors to their end position and holds them there.
Minimum dimensions of the profile and an unobtrusive design integrate the system into any living ambience.
Fine ground and anodised aluminium surfaces support the quality of the hardware.
Tested in accordance with
DIN EN 1527:2013

Suitable for wooden door with an additional adaptor
What makes this kit so great? NO pre drilling of glass is required.... The glass is held by clamps!!

Strong self adhesive flush pulls & pull handles are available

Rail Type Profile

Wall Mounted

Ceiling Mounted Special Order

Height Adjustable

Max Door Weight 80kg

Min Door Width 850mm

Suitable for 8mm glass

Suitable for 10mm glass

Suitable for wooden doors

with optional adaptor

Min Wooden door thickness 34mm

Max Wooden door thickness 40mm

Finish SSO

Rail Dimension 45 x 63mm

1 Leaf Option

2 Leaf Option

Soft Close

Standard Length 2000 or 4000mm

Optional Length(special order) 2500mm

DIN EN 1527 100,000cycles

Wall distance(door-wall) glass 21.5mm

wood 5.5mm

Optional skirting/Architrave Spacer Kit 12.5mm
