Exidor Panic Latch

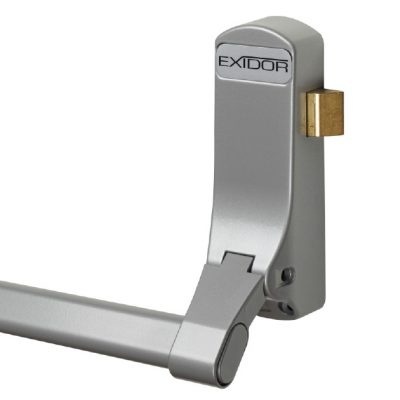

Exidor 296 panic latch
Essential panic and exit hardware.

Unit type: Panic unit

Activation: Push bar

Door type: Single doorset or rebated double doorset, active leaf

Door opening: Outward

Projection: 98mm from door face

Mounting method: Surface-mounted bar

No. of locking points: 1

Bolt style: Latch

Durability: 200,000 cycles

Max door width: 1220mm, bar can be cut to size on site

Max door mass: Up to 200kg

Operation: Pushing the bar down into the door face retracts the latch. Releasing the bar returns the latch to the rest position.

Finish: SIL or SSE (other finishes on request)

Suitable for fire doors: Timber FD120, metal FD240
