Accessible Toilet Lock - Satin Stainless Steel

The JEFLOCK Accessible toilet lock is designed especially to comply with new legislation Part M, DDA & BS8300 etc. The accessible toilet lock operates from the outside with a lever handle to release the roller latch bolt & has a red & white indicator release, in an emergency the coin release can be turned to release the dead bolt. The outside operation is no different to any other bathroom lock & does not require instructions.

The inside lever handle presses down to release the latch bolt & lifts up to throw the dead bolt as illustrated this is an unusual feature & therefore has a sign to read lift handle to lock this message is repeated in Braille.

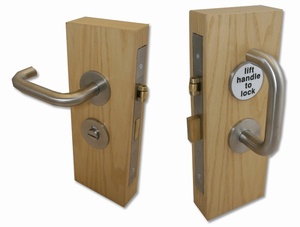

The unique JEFLOCK Accessible toilet lock comes in a complete set as shown in the photographs below. Available in all standard Normbau colours, Metal finishes Satin Stainless Steel, Polished Stainless Steel, Polished Brass, Satin Brass, Matt Black & IBMA are also available.

Lock Case: Stainless steel forend & strike plate. Roller bolt latch (less likely to cause injuries or damage to clothing than a normal latch bolt). Separate deadbolt with 78mm centres and 57mm backset
Furniture : Normbau standard colours 23mm diameter levers. Metal finishes 19mm diameter levers.
ALL metal handles are Grade 4 - for high frequency use of doors
Fixings : Bolt through Secure Fixings
Metal finishes: Satin stainless steel SSS, Polished stainless steel PSS, Brass, Bronze IBMA, Satin Brass SB, Matt Black MB, 19mm diameter levers
Lettering: Black letters on white background & Braille to read "lift handle to lock"
Extras: Double lipped strike plate for double action doors
