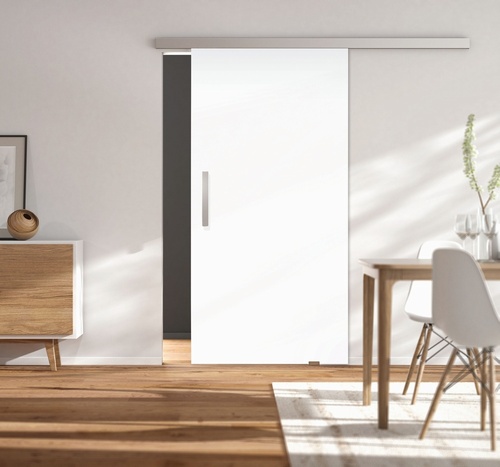

Planeo Comfort Sliding Door System (for wood doors)

Description

Manual sliding door system with running rails sliding invisibly in the profile. Can be used for 1 leaf wooden sliding doors. The soft closing operation gently guides the door into the end position and holds it there. The system is prepared for installation to the wall and can be easily installed by frontal attachment of the door.
Minimum dimensions of the profile and an unobtrusive design integrates the system into any living ambience.

Tested in accordance with
DIN EN 1527:1998

Rail Type Profile

Wall Mounted

Height Adjustable

Max Door Weight 60kg

Min Door Width 850mm

Suitable for wooden doors

Min Wooden door thickness 34mm

Max Wooden door thickness 40mm

Finish SSO

Rail Dimension 60 x 65mm

1 Leaf Option

Soft Close

Standard Length 2000mm

Optional Length(special order) 2500mm

DIN EN 1527 100,000cycles

Wall distance(door-wall) wood 12.3mm

Optional skirting/Architrave Spacer Kit 12.5mm
